12: Pattern refactoring
This chapter will look at the process of
solving a problem by applying design patterns in an evolutionary fashion. That
is, a first cut design will be used for the initial solution, and then this
solution will be examined and various design patterns will be applied to the
problem (some of which will work, and some of which won’t). The key
question that will always be asked in seeking improved solutions is “what
will change?”
This process is similar to what Martin
Fowler talks about in his book Refactoring: Improving the Design of Existing
Code[14]
(although he tends to talk about pieces of code more than pattern-level
designs). You start with a solution, and then when you discover that it
doesn’t continue to meet your needs, you fix it. Of course, this is a
natural tendency but in computer programming it’s been extremely difficult
to accomplish with procedural programs, and the acceptance of the idea that we
can refactor code and designs adds to the body of proof that
object-oriented programming is “a good
thing.”
Simulating the trash recycler
The nature of this problem is that the
trash is thrown unclassified into a single bin, so the specific type information
is lost. But later, the specific type information must be recovered to properly
sort the trash. In the initial solution, RTTI (described in Chapter 12 of
Thinking in Java, 2nd edition) is used.
This is not a trivial design because it
has an added constraint. That’s what makes it interesting—it’s
more like the messy problems you’re likely to encounter in your work. The
extra constraint is that the trash arrives at the trash recycling plant all
mixed together. The program must model the sorting of that trash. This is where
RTTI comes in: you have a bunch of anonymous pieces of trash, and the program
figures out exactly what type they are.
//: c12:recyclea:RecycleA.java
// Recycling with RTTI.
import java.util.*;
import java.io.*;
import com.bruceeckel.test.*;
abstract class Trash {
private double weight;
Trash(double wt) { weight = wt; }
abstract double getValue();
double getWeight() { return weight; }
// Sums the value of Trash in a bin:
static void sumValue(Iterator it) {
double val = 0.0f;
while(it.hasNext()) {
// One kind of RTTI:
// A dynamically-checked cast
Trash t = (Trash)it.next();
// Polymorphism in action:
val += t.getWeight() * t.getValue();
System.out.println(
"weight of " +
// Using RTTI to get type
// information about the class:
t.getClass().getName() +
" = " + t.getWeight());
}
System.out.println("Total value = " + val);
}
}
class Aluminum extends Trash {
static double val = 1.67f;
Aluminum(double wt) { super(wt); }
double getValue() { return val; }
static void setValue(double newval) {
val = newval;
}
}
class Paper extends Trash {
static double val = 0.10f;
Paper(double wt) { super(wt); }
double getValue() { return val; }
static void setValue(double newval) {
val = newval;
}
}
class Glass extends Trash {
static double val = 0.23f;
Glass(double wt) { super(wt); }
double getValue() { return val; }
static void setValue(double newval) {
val = newval;
}
}
public class RecycleA extends UnitTest {
Collection
bin = new ArrayList(),
glassBin = new ArrayList(),
paperBin = new ArrayList(),
alBin = new ArrayList();
public RecycleA() {
// Fill up the Trash bin:
for(int i = 0; i < 30; i++)
switch((int)(Math.random() * 3)) {
case 0 :
bin.add(new
Aluminum(Math.random() * 100));
break;
case 1 :
bin.add(new
Paper(Math.random() * 100));
break;
case 2 :
bin.add(new
Glass(Math.random() * 100));
}
}
public void test() {
Iterator sorter = bin.iterator();
// Sort the Trash:
while(sorter.hasNext()) {
Object t = sorter.next();
// RTTI to show class membership:
if(t instanceof Aluminum)
alBin.add(t);
if(t instanceof Paper)
paperBin.add(t);
if(t instanceof Glass)
glassBin.add(t);
}
Trash.sumValue(alBin.iterator());
Trash.sumValue(paperBin.iterator());
Trash.sumValue(glassBin.iterator());
Trash.sumValue(bin.iterator());
}
public static void main(String args[]) {
new RecycleA().test();
}
} ///:~
In
the source code listings available for this book, this file will be placed in
the subdirectory recyclea that branches off from the subdirectory
c12 (for Chapter 12). The unpacking tool takes care of placing it into
the correct subdirectory. The reason for doing this is that this chapter
rewrites this particular example a number of times and by putting each version
in its own directory (using the default package in each directory so that
invoking the program is easy), the class names will not clash.
Several
ArrayList objects are created to hold Trash
references. Of course, ArrayLists actually hold Objects so
they’ll hold anything at all. The reason they hold Trash (or
something derived from Trash) is only because you’ve been careful
to not put in anything except Trash. If you do put something
“wrong” into the ArrayList, you won’t get any
compile-time warnings or errors—you’ll find out only via an
exception at run time.
When the Trash references are
added, they lose their specific identities and become simply Object
references (they are upcast). However, because
of polymorphism the proper behavior still occurs when the
dynamically-bound methods are called through the
Iterator sorter, once the resulting
Object has been cast back to Trash.
sumValue( ) also takes an Iterator to perform operations on
every object in the ArrayList.
It looks silly to upcast the types of
Trash into a container holding base type references, and then turn around
and downcast. Why not just put the trash into the appropriate receptacle in the
first place? (Indeed, this is the whole enigma of recycling). In this program it
would be easy to repair, but sometimes a system’s structure and
flexibility can benefit greatly from downcasting.
The program satisfies the design
requirements: it works. This might be fine as long as it’s a one-shot
solution. However, a useful program tends to evolve over time, so you must ask,
“What if the situation changes?” For example, cardboard is now a
valuable recyclable commodity, so how will that be integrated into the system
(especially if the program is large and complicated). Since the above
type-check coding in the switch statement could be
scattered throughout the program, you must go find all that code every time a
new type is added, and if you miss one the compiler won’t give you any
help by pointing out an error.
The key to the
misuse of RTTI here is that every type is tested.
If you’re looking for only a subset of types because that subset needs
special treatment, that’s probably fine. But if you’re hunting for
every type inside a switch statement, then you’re probably missing an
important point, and definitely making your code less maintainable. In the next
section we’ll look at how this program evolved over several stages to
become much more flexible. This should prove a valuable example in program
design.
Improving the design
The solutions in Design Patterns
are organized around the question “What will change as this program
evolves?” This is usually the most important question that you can ask
about any design. If you can build your system around the answer, the results
will be two-pronged: not only will your system allow easy (and inexpensive)
maintenance, but you might also produce components that are reusable, so that
other systems can be built more cheaply. This is the promise of object-oriented
programming, but it doesn’t happen automatically; it requires thought and
insight on your part. In this section we’ll see how this process can
happen during the refinement of a system.
The answer to the question “What
will change?” for the recycling system is a common one: more types will be
added to the system. The goal of the design, then, is to make this addition of
types as painless as possible. In the recycling program, we’d like to
encapsulate all places where specific type information is mentioned, so (if for
no other reason) any changes can be localized to those encapsulations. It turns
out that this process also cleans up the rest of the code
considerably.
“Make more objects”
This brings up a general object-oriented
design principle that I first heard spoken by Grady Booch:
“If the design is too complicated, make more objects.” This is
simultaneously counterintuitive and ludicrously simple, and yet it’s the
most useful guideline I’ve found. (You might observe that “making
more objects” is often equivalent to “add another level of
indirection.”) In general, if you find a place with messy code, consider
what sort of class would clean that up. Often the side effect of cleaning up the
code will be a system that has better structure and is more
flexible.
Consider first the place where
Trash objects are created, which is a switch statement inside
main( ):
for(int i = 0; i < 30; i++)
switch((int)(Math.random() * 3)) {
case 0 :
bin.add(new
Aluminum(Math.random() * 100));
break;
case 1 :
bin.add(new
Paper(Math.random() * 100));
break;
case 2 :
bin.add(new
Glass(Math.random() * 100));
}
This is definitely messy,
and also a place where you must change code whenever a new type is added. If new
types are commonly added, a better solution is a single method that takes all of
the necessary information and produces a reference to an object of the correct
type, already upcast to a trash object. In Design Patterns this is
broadly referred to as a
creational pattern (of which
there are several). The specific pattern that will be applied here is a variant
of the Factory Method. Here,
the factory method is a static member of Trash, but more commonly
it is a method that is overridden in the derived class.
The idea of the factory method is that
you pass it the essential information it needs to know to create your object,
then stand back and wait for the reference (already upcast to the base type) to
pop out as the return value. From then on, you treat the object polymorphically.
Thus, you never even need to know the exact type of object that’s created.
In fact, the factory method hides it from you to prevent accidental misuse. If
you want to use the object without polymorphism, you must explicitly use RTTI
and casting.
But there’s a little problem,
especially when you use the more complicated approach (not shown here) of making
the factory method in the base class and overriding it in the derived classes.
What if the information required in the derived class requires more or different
arguments? “Creating more objects” solves this problem. To implement
the factory method, the Trash class gets a new method called
factory. To hide the creational data, there’s a new class called
Messenger that carries all of the necessary information for the
factory method to create the appropriate Trash object (we’ve
started referring to Messenger as a design pattern, but it’s simple
enough that you may not choose to elevate it to that status). Here’s a
simple implementation of Messenger:
class Messenger {
int type;
// Must change this to add another type:
static final int MAX_NUM = 4;
double data;
Messenger(int typeNum, double val) {
type = typeNum % MAX_NUM;
data = val;
}
}
A Messenger object’s
only job is to hold information for the factory( ) method. Now, if
there’s a situation in which factory( ) needs more or
different information to create a new type of Trash object, the
factory( ) interface doesn’t need to be changed. The
Messenger class can be changed by adding new data and new constructors,
or in the more typical object-oriented fashion of subclassing.
The factory( ) method for
this simple example looks like this:
static Trash factory(Messenger i) {
switch(i.type) {
default: // To quiet the compiler
case 0:
return new Aluminum(i.data);
case 1:
return new Paper(i.data);
case 2:
return new Glass(i.data);
// Two lines here:
case 3:
return new Cardboard(i.data);
}
}
Here, the determination of the
exact type of object is simple, but you can imagine a more complicated system in
which factory( ) uses an elaborate algorithm. The point is that
it’s now hidden away in one place, and you know to come to this place when
you add new types.
The creation of new objects is now much
simpler in main( ):
for(int i = 0; i < 30; i++)
bin.add(
Trash.factory(
new Messenger(
(int)(Math.random() * Messenger.MAX_NUM),
Math.random() * 100)));
A
Messenger object is created to pass the data into factory( ),
which in turn produces some kind of Trash object on the heap and returns
the reference that’s added to the ArrayList bin. Of course,
if you change the quantity and type of argument, this statement will still need
to be modified, but that can be eliminated if the creation of the
Messenger object is automated. For example, an ArrayList of
arguments can be passed into the constructor of a Messenger object (or
directly into a factory( ) call, for that matter). This requires
that the arguments be parsed and checked at run time, but it does provide the
greatest flexibility.
You can see from this code what
“vector
of change” problem the factory is responsible for solving: if you add new
types to the system (the change), the only code that must be modified is within
the factory, so the factory isolates the effect of that
change.
A pattern for prototyping creation
A problem with the design above is that
it still requires a central location where all the types of the objects must be
known: inside the factory( ) method. If new types are regularly
being added to the system, the factory( ) method must be changed for
each new type. When you discover something like this, it is useful to try to go
one step further and move all of the information about the
type—including its creation—into the class representing that type.
This way, the only thing you need to do to add a new type to the system is to
inherit a single class.
To move the information concerning type
creation into each specific type of Trash, the
“prototype” pattern
(from the Design Patterns book) will be used. The general idea is that
you have a master sequence of objects, one of each type you’re interested
in making. The objects in this sequence are used only for making new
objects, using an operation that’s not unlike the
clone( ) scheme built into Java’s root
class Object. In this case, we’ll name the cloning method
tClone( ). When you’re ready to make a new object,
presumably you have some sort of information that establishes the type of object
you want to create, then you move through the master sequence comparing your
information with whatever appropriate information is in the prototype objects in
the master sequence. When you find one that matches your needs, you clone
it.
In this scheme there is no hard-coded
information for creation. Each object knows how to expose appropriate
information and how to clone itself. Thus, the factory( ) method
doesn’t need to be changed when a new type is added to the system.
One approach to the problem of
prototyping is to add a number of methods to support the creation of new
objects. However, in Java 1.1 there’s already support for creating new
objects if you have a reference to the Class object. With
Java 1.1 reflection
(introduced in Chapter 12 of Thinking in Java, 2nd edition)
you can call a constructor even if you have only a reference to the Class
object. This is the perfect solution for the prototyping
problem.
The list of prototypes will be
represented indirectly by a list of references to all the Class objects
you want to create. In addition, if the prototyping fails, the
factory( ) method will assume that it’s because a particular
Class object wasn’t in the list, and it will attempt to load it. By
loading the prototypes dynamically like this, the Trash class
doesn’t need to know what types it is working with, so it doesn’t
need any modifications when you add new types. This allows it to be easily
reused throughout the rest of the chapter.
//: c12:trash:Trash.java
// Base class for Trash recycling examples.
package c12.trash;
import java.util.*;
import java.lang.reflect.*;
public abstract class Trash {
private double weight;
public Trash(double wt) { weight = wt; }
public Trash() {}
public abstract double getValue();
public double getWeight() { return weight; }
// Sums the value of Trash given an
// Iterator to any container of Trash:
public static void sumValue(Iterator it) {
double val = 0.0f;
while(it.hasNext()) {
// One kind of RTTI:
// A dynamically-checked cast
Trash t = (Trash)it.next();
val += t.getWeight() * t.getValue();
System.out.println(
"weight of " +
// Using RTTI to get type
// information about the class:
t.getClass().getName() +
" = " + t.getWeight());
}
System.out.println("Total value = " + val);
}
// Remainder of class provides
// support for prototyping:
private static List trashTypes =
new ArrayList();
public static Trash factory(Messenger info) {
for(int i = 0; i < trashTypes.size(); i++) {
// Somehow determine the new type
// to create, and create one:
Class tc = (Class)trashTypes.get(i);
if (tc.getName().indexOf(info.id) != -1) {
try {
// Get the dynamic constructor method
// that takes a double argument:
Constructor ctor = tc.getConstructor(
new Class[]{ double.class });
// Call the constructor
// to create a new object:
return (Trash)ctor.newInstance(
new Object[]{new Double(info.data)});
} catch(Exception ex) {
ex.printStackTrace(System.err);
throw new RuntimeException(
"Cannot Create Trash");
}
}
}
// Class was not in the list. Try to load it,
// but it must be in your class path!
try {
System.out.println("Loading " + info.id);
trashTypes.add(Class.forName(info.id));
} catch(Exception e) {
e.printStackTrace(System.err);
throw new RuntimeException(
"Prototype not found");
}
// Loaded successfully.
// Recursive call should work:
return factory(info);
}
public static class Messenger {
public String id;
public double data;
public Messenger(String name, double val) {
id = name;
data = val;
}
}
} ///:~
The basic Trash class
and sumValue( ) remain as before. The rest of the class supports the
prototyping pattern. You first see two
inner classes (which are made
static, so they are inner classes only for code organization purposes)
describing exceptions that can occur. This is followed by an ArrayList
called trashTypes, which is used to hold the Class
references.
In Trash.factory( ), the
String inside the Messenger object id (a different version
of the Messenger class than that of the prior discussion) contains the
type name of the Trash to be created; this String is compared to
the Class names in the list. If there’s a match, then that’s
the object to create. Of course, there are many ways to determine what object
you want to make. This one is used so that information read in from a file can
be turned into objects.
Once you’ve discovered which kind
of Trash to create, then the reflection methods
come into play. The getConstructor( ) method
takes an argument that’s an array of Class
references. This array represents the arguments, in their proper order, for the
constructor that you’re looking for. Here, the
array is dynamically created using
the Java 1.1 array-creation syntax:
new Class[] {double.class}
This
code assumes that every Trash type has a constructor that takes a
double (and notice that double.class is distinct from
Double.class). It’s also possible, for a more flexible solution, to
call getConstructors( ), which returns an
array of the possible constructors.
What comes back from
getConstructor( ) is a reference to a
Constructor object (part of
java.lang.reflect). You call the constructor dynamically with the method
newInstance( ), which takes an array of
Object containing the actual arguments. This array is again created using
the Java 1.1 syntax:
new Object[]{new Double(Messenger.data)}
In
this case, however, the double must be placed inside a wrapper class so
that it can be part of this array of objects. The process of calling
newInstance( ) extracts the double, but you can see it is a
bit confusing—an argument might be a double or a Double, but
when you make the call you must always pass in a Double. Fortunately,
this issue exists only for the primitive types.
Once you understand how to do it, the
process of creating a new object given only a Class reference is
remarkably simple. Reflection also allows you to call methods in this same
dynamic fashion.
Of course, the appropriate Class
reference might not be in the trashTypes list. In this case, the
return in the inner loop is never executed and you’ll drop out at
the end. Here, the program tries to rectify the situation by loading the
Class object dynamically and adding it to the trashTypes list. If
it still can’t be found something is really wrong, but if the load is
successful then the factory method is called
recursively to try
again.
As you’ll see, the beauty of this
design is that this code doesn’t need to be changed, regardless of the
different situations it will be used in (assuming that all Trash
subclasses contain a constructor that takes a single double
argument).
Trash subclasses
To fit into the prototyping scheme, the
only thing that’s required of each new subclass of Trash is that it
contain a constructor that takes a double argument. Java reflection
handles everything else.
Here are the different types of
Trash, each in their own file but part of the Trash package
(again, to facilitate reuse within the chapter):
//: c12:trash:Aluminum.java
// The Aluminum class with prototyping.
package c12.trash;
public class Aluminum extends Trash {
private static double val = 1.67f;
public Aluminum(double wt) { super(wt); }
public double getValue() { return val; }
public static void setValue(double newVal) {
val = newVal;
}
} ///:~
//: c12:trash:Paper.java
// The Paper class with prototyping.
package c12.trash;
public class Paper extends Trash {
private static double val = 0.10f;
public Paper(double wt) { super(wt); }
public double getValue() { return val; }
public static void setValue(double newVal) {
val = newVal;
}
} ///:~
//: c12:trash:Glass.java
// The Glass class with prototyping.
package c12.trash;
public class Glass extends Trash {
private static double val = 0.23f;
public Glass(double wt) { super(wt); }
public double getValue() { return val; }
public static void setValue(double newVal) {
val = newVal;
}
} ///:~
And here’s a new type
of Trash:
//: c12:trash:Cardboard.java
// The Cardboard class with prototyping.
package c12.trash;
public class Cardboard extends Trash {
private static double val = 0.23f;
public Cardboard(double wt) { super(wt); }
public double getValue() { return val; }
public static void setValue(double newVal) {
val = newVal;
}
} ///:~
You can see that, other than
the constructor, there’s nothing special about any of these
classes.
Parsing Trash from an external file
The information about Trash
objects will be read from an outside file. The file has all of the necessary
information about each piece of trash on a single line in the form
Trash:weight, such as:
//:! c12:trash:Trash.dat
c12.trash.Glass:54
c12.trash.Paper:22
c12.trash.Paper:11
c12.trash.Glass:17
c12.trash.Aluminum:89
c12.trash.Paper:88
c12.trash.Aluminum:76
c12.trash.Cardboard:96
c12.trash.Aluminum:25
c12.trash.Aluminum:34
c12.trash.Glass:11
c12.trash.Glass:68
c12.trash.Glass:43
c12.trash.Aluminum:27
c12.trash.Cardboard:44
c12.trash.Aluminum:18
c12.trash.Paper:91
c12.trash.Glass:63
c12.trash.Glass:50
c12.trash.Glass:80
c12.trash.Aluminum:81
c12.trash.Cardboard:12
c12.trash.Glass:12
c12.trash.Glass:54
c12.trash.Aluminum:36
c12.trash.Aluminum:93
c12.trash.Glass:93
c12.trash.Paper:80
c12.trash.Glass:36
c12.trash.Glass:12
c12.trash.Glass:60
c12.trash.Paper:66
c12.trash.Aluminum:36
c12.trash.Cardboard:22
///:~
Note that the class path must
be included when giving the class names, otherwise the class will not be
found.
This file is read using the
previously-defined StringList tool, and each line is picked aparat using
the String method
indexOf( ) to produce the index of the
‘:’. This is first used with the String method
substring( ) to extract
the name of the trash type, and next to get the weight that is turned into a
double with the static Double.valueOf( )
method. The trim( )
method removes white space at both ends of a string.
The Trash parser is placed in a
separate file since it will be reused throughout this chapter:
//: c12:trash:ParseTrash.java
// Parse file contents into Trash objects,
// placing each into a Fillable holder.
package c12.trash;
import java.util.*;
import java.io.*;
import com.bruceeckel.util.StringList;
public class ParseTrash {
public static void
fillBin(String filename, Fillable bin) {
Iterator it =
new StringList(filename).iterator();
while(it.hasNext()) {
String line = (String)it.next();
String type = line.substring(0,
line.indexOf(':')).trim();
double weight = Double.valueOf(
line.substring(line.indexOf(':') + 1)
.trim()).doubleValue();
bin.addTrash(
Trash.factory(
new Trash.Messenger(type, weight)));
}
}
// Special case to handle Collection:
public static void
fillBin(String filename, Collection bin) {
fillBin(filename, new FillableCollection(bin));
}
} ///:~
In RecycleA.java, an
ArrayList was used to hold the Trash objects. However, other types
of containers can be used as well. To allow for this, the first version of
fillBin( ) takes a reference to a Fillable, which is simply
an interface that supports a method called
addTrash( ):
//: c12:trash:Fillable.java
// Any object that can be filled with Trash.
package c12.trash;
public interface Fillable {
void addTrash(Trash t);
} ///:~
Anything that supports this
interface can be used with fillBin. Of course, Collection
doesn’t implement Fillable, so it won’t work. Since
Collection is used in most of the examples, it makes sense to add a
second overloaded fillBin( ) method that takes a Collection.
Any Collection can then be used as a Fillable object using an
adapter class:
//: c12:trash:FillableCollection.java
// Adapter that makes a Collection Fillable.
package c12.trash;
import java.util.*;
public class FillableCollection
implements Fillable {
private Collection c;
public FillableCollection(Collection cc) {
c = cc;
}
public void addTrash(Trash t) {
c.add(t);
}
} ///:~
You can see that the only
job of this class is to connect Fillable’s addTrash( )
method to Collection’s add( ). With this class in hand,
the overloaded fillBin( ) method can be used with a
Collection in ParseTrash.java:
public static void
fillBin(String filename, Collection bin) {
fillBin(filename, new FillableCollection(bin));
}
This approach works for any
container class that’s used frequently. Alternatively, the container class
can provide its own adapter that implements Fillable. (You’ll see
this later, in
DynaTrash.java.)
Recycling with prototyping
Now you can see the revised version of
RecycleA.java using the
prototyping
technique:
//: c12:recycleap:RecycleAP.java
// Recycling with RTTI and Prototypes.
import c12.trash.*;
import java.util.*;
import com.bruceeckel.test.*;
public class RecycleAP extends UnitTest {
Collection
bin = new ArrayList(),
glassBin = new ArrayList(),
paperBin = new ArrayList(),
alBin = new ArrayList();
public RecycleAP() {
// Fill up the Trash bin:
ParseTrash.fillBin(
"../trash/Trash.dat", bin);
}
public void test() {
Iterator sorter = bin.iterator();
// Sort the Trash:
while(sorter.hasNext()) {
Object t = sorter.next();
// RTTI to show class membership:
if(t instanceof Aluminum)
alBin.add(t);
if(t instanceof Paper)
paperBin.add(t);
if(t instanceof Glass)
glassBin.add(t);
}
Trash.sumValue(alBin.iterator());
Trash.sumValue(paperBin.iterator());
Trash.sumValue(glassBin.iterator());
Trash.sumValue(bin.iterator());
}
public static void main(String args[]) {
new RecycleAP().test();
}
} ///:~
All of the Trash
objects, as well as the ParseTrash and support classes, are now part of
the package c12.trash, so they are simply imported.
The process of opening the data file
containing Trash descriptions and the parsing of that file have been
wrapped into the static method ParseTrash.fillBin( ), so now
it’s no longer a part of our design focus. You will see that throughout
the rest of the chapter, no matter what new classes are added,
ParseTrash.fillBin( ) will continue to work without change, which
indicates a good design.
In terms of object creation, this design
does indeed severely localize the changes you need to make to add a new type to
the system. However, there’s a significant problem in the use of RTTI that
shows up clearly here. The program seems to run fine, and yet it never detects
any cardboard, even though there is cardboard in the list! This happens
because of the use of RTTI, which looks for only the types that you tell
it to look for. The clue that RTTI is being misused is
that every type in the system is being tested, rather than a single type
or subset of types. As you will see later, there are ways to use polymorphism
instead when you’re testing for every type. But if you use RTTI a lot in
this fashion, and you add a new type to your system, you can easily forget to
make the necessary changes in your program and produce a difficult-to-find bug.
So it’s worth trying to eliminate RTTI in this case, not just for
aesthetic reasons—it produces more maintainable
code.
Abstracting usage
With creation out of the way, it’s
time to tackle the remainder of the design: where the classes are used. Since
it’s the act of sorting into bins that’s particularly ugly and
exposed, why not take that process and hide it inside a class? This is the
principle of “If you must do something ugly, at least localize the
ugliness inside a class.” It looks like this:
The TrashSorter object
initialization must now be changed whenever a new type of Trash is added
to the model. You could imagine that the TrashSorter class might look
something like this:
class TrashSorter extends ArrayList {
void sort(Trash t) { /* ... */ }
}
That is, TrashSorter is an
ArrayList of references to ArrayLists of Trash references,
and with add( ) you can install another one, like
so:
TrashSorter ts = new TrashSorter();
ts.add(new ArrayList());
Now,
however, sort( ) becomes a problem. How does the statically-coded
method deal with the fact that a new type has been added? To solve this, the
type information must be removed from sort( ) so that all it needs
to do is call a generic method that takes care of the details of type. This, of
course, is another way to describe a dynamically-bound method. So
sort( ) will simply move through the sequence and call a
dynamically-bound method for each ArrayList. Since the job of this method
is to grab the pieces of trash it is interested in, it’s called

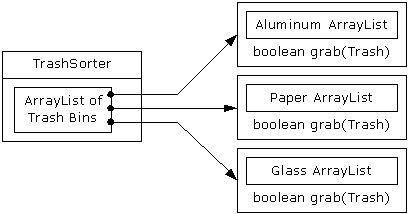

grab(Trash). The structure now looks like:
TrashSorter needs to call each
grab( ) method and get a different result depending on what type of
Trash the current ArrayList is holding. That is, each
ArrayList must be aware of the type it holds. The classic approach to
this problem is to create a base “Trash bin” class and
inherit a new derived class for each different type you want to hold. If Java
had a parameterized type mechanism that would probably be the most
straightforward approach. But rather than hand-coding all the classes that such
a mechanism should be building for us, further observation can produce a better
approach.
A basic OOP design principle is
“Use data members for variation in state, use
polymorphism for variation in behavior.” Your first
thought might be that the grab( ) method certainly behaves
differently for an ArrayList that holds Paper than for one that
holds Glass. But what it does is strictly dependent on the type, and
nothing else. This could be interpreted as a different state, and since Java has
a class to represent type (Class) this can be used to determine the type
of Trash a particular Tbin will hold.
The constructor for this Tbin
requires that you hand it the Class of your choice. This tells the
ArrayList what type it is supposed to hold. Then the grab( )
method uses Class BinType and RTTI to see if the Trash object
you’ve handed it matches the type it’s supposed to
grab.
Here is the new version of the
program:
//: c12:recycleb:RecycleB.java
// Containers that grab objects of interest.
import c12.trash.*;
import java.util.*;
import com.bruceeckel.test.*;
// A container that admits only the right type
// of Trash (established in the constructor):
class Tbin {
private Collection list = new ArrayList();
private Class type;
public Tbin(Class binType) { type = binType; }
public boolean grab(Trash t) {
// Comparing class types:
if(t.getClass().equals(type)) {
list.add(t);
return true; // Object grabbed
}
return false; // Object not grabbed
}
public Iterator iterator() {
return list.iterator();
}
}
class TbinList extends ArrayList {
void sort(Trash t) {
Iterator e = iterator(); // Iterate over self
while(e.hasNext())
if(((Tbin)e.next()).grab(t)) return;
// Need a new Tbin for this type:
add(new Tbin(t.getClass()));
sort(t); // Recursive call
}
}
public class RecycleB extends UnitTest {
Collection bin = new ArrayList();
TbinList trashBins = new TbinList();
public RecycleB() {
ParseTrash.fillBin("../trash/Trash.dat",bin);
}
public void test() {
Iterator it = bin.iterator();
while(it.hasNext())
trashBins.sort((Trash)it.next());
Iterator e = trashBins.iterator();
while(e.hasNext()) {
Tbin b = (Tbin)e.next();
Trash.sumValue(b.iterator());
}
Trash.sumValue(bin.iterator());
}
public static void main(String args[]) {
new RecycleB().test();
}
} ///:~
Tbin contains a
Class reference type which establishes in the constructor what
what type it should grab. The grab() method checks this type against the
object you pass it. Note that in this design, grab() only accepts
Trash objects so you get compile-time type checking on the base type, but
you could also just accept Object and it would still
work.
TbinList
holds a set of Tbin references, so that sort( ) can iterate
through the Tbins when it’s looking for a match for the
Trash object you’ve handed it. If it doesn’t find a match, it
creates a new Tbin for the type that hasn’t been found, and makes a
recursive call to itself – the next time around, the new bin will be
found.
Notice the genericity of this code: it
doesn’t change at all if new types are added. If the bulk of your code
doesn’t need changing when a new type is added (or some other change
occurs) then you have an easily extensible
system.
Multiple dispatching
The above design is certainly
satisfactory. Adding new types to the system consists of adding or modifying
distinct classes without causing code changes to be propagated throughout the
system. In addition, RTTI is not “misused” as it was in
RecycleA.java. However, it’s possible to go one step further and
take a purist viewpoint about RTTI and say that it should
be eliminated altogether from the operation of sorting the trash into
bins.
To accomplish this, you must first take
the perspective that all type-dependent activities—such as detecting the
type of a piece of trash and putting it into the appropriate bin—should be
controlled through polymorphism and dynamic binding.
The previous examples first sorted by
type, then acted on sequences of elements that were all of a particular type.
But whenever you find yourself picking out particular types, stop and think. The
whole idea of polymorphism (dynamically-bound method calls) is to handle
type-specific information for you. So why are you hunting for
types?
The answer is something you probably
don’t think about: Java performs only single dispatching. That is, if you
are performing an operation on more than one object whose type is unknown, Java
will invoke the dynamic binding mechanism on only one of those types. This
doesn’t solve the problem, so you end up detecting some types manually and
effectively producing your own dynamic binding behavior.
The solution is called
multiple dispatching, which
means setting up a configuration such that a single method call produces more
than one dynamic method call and thus determines more than one type in the
process. To get this effect, you need to work with more than one type hierarchy:
you’ll need a type hierarchy for each dispatch. The following example
works with two hierarchies: the existing Trash family and a hierarchy of
the types of trash bins that the trash will be placed into. This second
hierarchy isn’t always obvious and in this case it needed to be created in
order to produce multiple dispatching (in this case there will be only two
dispatches, which is referred to as
double
dispatching).
Implementing the double dispatch
Remember that polymorphism can occur only
via method calls, so if you want double dispatching to occur, there must be two
method calls: one used to determine the type within each hierarchy. In the Trash
hierarchy there will be a new method called addToBin( ), which takes an
argument of an array of TypedBin. It uses this array to step through and try to
add itself to the appropriate bin, and this is where you'll see the double
dispatch.
The new hierarchy is TypedBin, and it
contains its own method called add( ) that is also used polymorphically.
But here's an additional twist: add( ) is overloaded to take arguments of
the different types of trash. So an essential part of the double dispatching

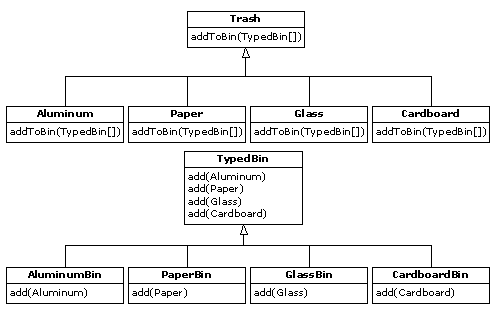

scheme also involves overloading.Redesigning the program produces a dilemma:
it’s now necessary for the base class Trash to contain an
addToBin( ) method. One approach is to copy all of the code and
change the base class. Another approach, which you can take when you don’t
have control of the source code, is to put the addToBin( ) method
into an interface, leave Trash alone, and inherit new specific
types of Aluminum, Paper, Glass, and Cardboard. This
is the approach that will be taken here.
Most of the classes in this design must
be public, so they are placed in their own files. Here’s the
interface:
//: c12:doubledispatch:TypedBinMember.java
// An interface for adding the double
// dispatching method to the trash hierarchy
// without modifying the original hierarchy.
interface TypedBinMember {
// The new method:
boolean addToBin(TypedBin[] tb);
} ///:~
In each particular subtype
of Aluminum, Paper, Glass, and Cardboard, the
addToBin( ) method in the interface TypedBinMember is
implemented, but it looks like the code is exactly the same in each
case:
//: c12:doubledispatch:DDAluminum.java
// Aluminum for double dispatching.
import c12.trash.*;
public class DDAluminum extends Aluminum
implements TypedBinMember {
public DDAluminum(double wt) { super(wt); }
public boolean addToBin(TypedBin[] tb) {
for(int i = 0; i < tb.length; i++)
if(tb[i].add(this))
return true;
return false;
}
} ///:~
//: c12:doubledispatch:DDPaper.java
// Paper for double dispatching.
import c12.trash.*;
public class DDPaper extends Paper
implements TypedBinMember {
public DDPaper(double wt) { super(wt); }
public boolean addToBin(TypedBin[] tb) {
for(int i = 0; i < tb.length; i++)
if(tb[i].add(this))
return true;
return false;
}
} ///:~
//: c12:doubledispatch:DDGlass.java
// Glass for double dispatching.
import c12.trash.*;
public class DDGlass extends Glass
implements TypedBinMember {
public DDGlass(double wt) { super(wt); }
public boolean addToBin(TypedBin[] tb) {
for(int i = 0; i < tb.length; i++)
if(tb[i].add(this))
return true;
return false;
}
} ///:~
//: c12:doubledispatch:DDCardboard.java
// Cardboard for double dispatching.
import c12.trash.*;
public class DDCardboard extends Cardboard
implements TypedBinMember {
public DDCardboard(double wt) { super(wt); }
public boolean addToBin(TypedBin[] tb) {
for(int i = 0; i < tb.length; i++)
if(tb[i].add(this))
return true;
return false;
}
} ///:~
The code in each
addToBin( ) calls add( ) for each TypedBin object
in the array. But notice the argument: this. The type of this is
different for each subclass of Trash, so the code is different. (Although
this code will benefit if a
parameterized type mechanism is ever
added to Java.) So this is the first part of the double dispatch, because once
you’re inside this method you know you’re Aluminum, or
Paper, etc. During the call to add( ), this information is
passed via the type of this. The compiler resolves the call to the proper
overloaded version of add( ). But since tb[i] produces
a reference to the base type TypedBin, this call will end up
calling a different method depending on the type of TypedBin that’s
currently selected. That is the second dispatch.
Here’s the base class for
TypedBin:
//: c12:doubledispatch:TypedBin.java
// A container for the second dispatch.
import c12.trash.*;
import java.util.*;
public abstract class TypedBin {
Collection c = new ArrayList();
protected boolean addIt(Trash t) {
c.add(t);
return true;
}
public Iterator iterator() {
return c.iterator();
}
public boolean add(DDAluminum a) {
return false;
}
public boolean add(DDPaper a) {
return false;
}
public boolean add(DDGlass a) {
return false;
}
public boolean add(DDCardboard a) {
return false;
}
} ///:~
You can see that the
overloaded add( ) methods all return false. If the method is
not overloaded in a derived class, it will continue to return false, and
the caller (addToBin( ), in this case) will assume that the current
Trash object has not been added successfully to a container, and continue
searching for the right container.
In each of the subclasses of
TypedBin, only one overloaded method is overridden, according to the type
of bin that’s being created. For example, CardboardBin overrides
add(DDCardboard). The overridden method adds the trash object to its
container and returns true, while all the rest of the add( )
methods in CardboardBin continue to return false, since they
haven’t been overridden. This is another case in which a parameterized
type mechanism in Java would allow automatic generation of code. (With
C++ templates, you
wouldn’t have to explicitly write the subclasses or place the
addToBin( ) method in Trash.)
Since for this example the trash types
have been customized and placed in a different directory, you’ll need a
different trash data file to make it work. Here’s a possible
DDTrash.dat:
//:! c12:doubledispatch:DDTrash.dat
DDGlass:54
DDPaper:22
DDPaper:11
DDGlass:17
DDAluminum:89
DDPaper:88
DDAluminum:76
DDCardboard:96
DDAluminum:25
DDAluminum:34
DDGlass:11
DDGlass:68
DDGlass:43
DDAluminum:27
DDCardboard:44
DDAluminum:18
DDPaper:91
DDGlass:63
DDGlass:50
DDGlass:80
DDAluminum:81
DDCardboard:12
DDGlass:12
DDGlass:54
DDAluminum:36
DDAluminum:93
DDGlass:93
DDPaper:80
DDGlass:36
DDGlass:12
DDGlass:60
DDPaper:66
DDAluminum:36
DDCardboard:22
///:~
Here’s the rest of the
program:
//: c12:doubledispatch:DoubleDispatch.java
// Using multiple dispatching to handle more
// than one unknown type during a method call.
import c12.trash.*;
import java.util.*;
import com.bruceeckel.test.*;
class AluminumBin extends TypedBin {
public boolean add(DDAluminum a) {
return addIt(a);
}
}
class PaperBin extends TypedBin {
public boolean add(DDPaper a) {
return addIt(a);
}
}
class GlassBin extends TypedBin {
public boolean add(DDGlass a) {
return addIt(a);
}
}
class CardboardBin extends TypedBin {
public boolean add(DDCardboard a) {
return addIt(a);
}
}
class TrashBinSet {
private TypedBin[] binSet = {
new AluminumBin(),
new PaperBin(),
new GlassBin(),
new CardboardBin()
};
public void sortIntoBins(Collection bin) {
Iterator e = bin.iterator();
while(e.hasNext()) {
TypedBinMember t =
(TypedBinMember)e.next();
if(!t.addToBin(binSet))
System.err.println("Couldn't add " + t);
}
}
public TypedBin[] binSet() { return binSet; }
}
public class DoubleDispatch extends UnitTest {
Collection bin = new ArrayList();
TrashBinSet bins = new TrashBinSet();
public DoubleDispatch() {
// ParseTrash still works, without changes:
ParseTrash.fillBin("DDTrash.dat", bin);
}
public void test() {
// Sort from the master bin into
// the individually-typed bins:
bins.sortIntoBins(bin);
TypedBin[] tb = bins.binSet();
// Perform sumValue for each bin...
for(int i = 0; i < tb.length; i++)
Trash.sumValue(tb[i].c.iterator());
// ... and for the master bin
Trash.sumValue(bin.iterator());
}
public static void main(String args[]) {
new DoubleDispatch().test();
}
} ///:~
TrashBinSet
encapsulates all of the different types of TypedBins, along with the
sortIntoBins( ) method, which is where all the double dispatching
takes place. You can see that once the structure is set up, sorting into the
various TypedBins is remarkably easy. In addition, the efficiency of two
dynamic method calls is probably better than any other way you could
sort.
Notice the ease of use of this system in
main( ), as well as the complete independence of any specific type
information within main( ). All other methods that talk only to the
Trash base-class interface will be equally invulnerable to changes in
Trash types.
The changes necessary to add a new type
are relatively isolated: you modify TypedBin, inherit the new type
of Trash with its addToBin( ) method, then inherit a new
TypedBin (this is really just a copy and simple edit), and finally add a
new type into the aggregate initialization for
TrashBinSet.
The Visitor pattern
Now consider applying a design pattern
that has an entirely different goal to the trash sorting
problem.
For this pattern, we are no longer
concerned with optimizing the addition of new types of Trash to the
system. Indeed, this pattern makes adding a new type of Trash more
complicated. The assumption is that you have a primary class hierarchy that is
fixed; perhaps it’s from another vendor and you can’t make changes
to that hierarchy. However, you’d like to add new polymorphic methods to
that hierarchy, which means that normally you’d have to add something to
the base class interface. So the dilemma is that you need to add methods to the
base class, but you can’t touch the base class. How do you get around
this?
The design pattern that solves this kind
of problem is called a “visitor” (the final one in the Design
Patterns book), and it builds on the double dispatching scheme shown
in the last section.
The
visitor pattern allows you to extend
the interface of the primary type by creating a separate class hierarchy of type
Visitor to virtualize the operations performed upon the primary type. The
objects of the primary type simply “accept” the visitor, then call
the visitor’s dynamically-bound method. It looks like
this:
Now, if v is a Visitable
reference to an Aluminum object, the code:
PriceVisitor pv = new PriceVisitor();
v.accept(pv);
uses double
dispatching to cause two polymorphic method calls: the first one to select
Aluminum’s version of accept( ), and the second one
within accept( ) when the specific version of visit( )
is called dynamically using the base-class Visitor reference
v.
This configuration means that new
functionality can be added to the system in the form of new subclasses of
Visitor. The Trash hierarchy doesn’t need to be touched.
This is the prime benefit of the visitor pattern: you can add new polymorphic
functionality to a class hierarchy without touching that hierarchy (once the
accept( ) methods have been installed). Note that the benefit is
helpful here but not exactly what we started out to accomplish, so at first
blush you might decide that this isn’t the desired
solution.
But look at one thing that’s been
accomplished: the visitor solution avoids sorting from the master Trash
sequence into individual typed sequences. Thus, you can leave everything in the
single master sequence and simply pass through that sequence using the
appropriate visitor to accomplish the goal. Although this behavior seems to be a
side effect of visitor, it does give us what we want (avoiding
RTTI).
The
double dispatching in the visitor
pattern takes care of determining both the type of Trash and the type of
Visitor. In the following example, there are two implementations
of Visitor: PriceVisitor to both determine and sum the price, and
WeightVisitor to keep track of the weights.
You can see all of this implemented in
the new, improved version of the recycling program.
As with DoubleDispatch.java, the
Trash class is left alone and a new interface is created to add the
accept( ) method:
//: c12:trashvisitor:Visitable.java
// An interface to add visitor functionality
// to the Trash hierarchy without
// modifying the base class.
import c12.trash.*;
interface Visitable {
// The new method:
void accept(Visitor v);
} ///:~
Since there’s nothing
concrete in the Visitor base class, it can be created as an
interface:
//: c12:trashvisitor:Visitor.java
// The base interface for visitors.
import c12.trash.*;
interface Visitor {
void visit(Aluminum a);
void visit(Paper p);
void visit(Glass g);
void visit(Cardboard c);
} ///:~
A Reflective Decorator
At this point, you could follow
the same approach that was used for double dispatching and create new subtypes
of Aluminum, Paper, Glass, and Cardboard that
implement the accept( ) method. For example, the new
Visitable Aluminum would look like this:
//: c12:trashvisitor:VAluminum.java
// Taking the previous approach of creating a
// specialized Aluminum for the visitor pattern.
import c12.trash.*;
public class VAluminum extends Aluminum
implements Visitable {
public VAluminum(double wt) { super(wt); }
public void accept(Visitor v) {
v.visit(this);
}
} ///:~
However, we seem to be
encountering an “explosion of interfaces:” basic Trash,
special versions for double dispatching, and now more special versions for
visitor. Of course, this “explosion of interfaces” is
arbitrary—one could simply put the additional methods in the Trash
class. If we ignore that we can instead see an opportunity to use the
Decorator pattern: it seems like it should be possible to create a
Decorator that can be wrapped around an ordinary Trash object and
will produce the same interface as Trash and add the extra
accept( ) method. In fact, it’s a perfect example of the value
of Decorator.
The double dispatch creates a problem,
however. Since it relies on overloading of both accept( ) and
visit( ), it would seem to require specialized code for each
different version of the accept( ) method. With C++ templates, this
would be fairly easy to accomplish (since templates automatically generate
type-specialized code) but Java has no such mechanism—at least it does not
appear to. However, reflection allows you to determine type information at run
time, and it turns out to solve many problems that would seem to require
templates (albeit not as simply). Here’s the decorator that does the
trick[15]:
//: c12:trashvisitor:VisitableDecorator.java
// A decorator that adapts the generic Trash
// classes to the visitor pattern.
import c12.trash.*;
import java.lang.reflect.*;
public class VisitableDecorator
extends Trash implements Visitable {
private Trash delegate;
private Method dispatch;
public VisitableDecorator(Trash t) {
delegate = t;
try {
dispatch = Visitor.class.getMethod (
"visit", new Class[] { t.getClass() }
);
} catch (Exception ex) {
ex.printStackTrace();
}
}
public double getValue() {
return delegate.getValue();
}
public double getWeight() {
return delegate.getWeight();
}
public void accept(Visitor v) {
try {
dispatch.invoke(v, new Object[]{delegate});
} catch (Exception ex) {
ex.printStackTrace();
}
}
} ///:~
[[ Description of Reflection
use ]]
The only other tool we need is a new type
of Fillable adapter that automatically decorates the objects as they are
being created from the original Trash.dat file. But this might as well be
a decorator itself, decorating any kind of Fillable:
//: c12:trashvisitor:FillableVisitor.java
// Adapter Decorator that adds the visitable
// decorator as the Trash objects are
// being created.
import c12.trash.*;
import java.util.*;
public class FillableVisitor
implements Fillable {
private Fillable f;
public FillableVisitor(Fillable ff) { f = ff; }
public void addTrash(Trash t) {
f.addTrash(new VisitableDecorator(t));
}
} ///:~
Now you can wrap it around
any kind of existing Fillable, or any new ones that haven’t yet
been created.
The rest of the program creates specific
Visitor types and sends them through a single list of Trash
objects:
//: c12:trashvisitor:TrashVisitor.java
// The "visitor" pattern with VisitableDecorators.
import c12.trash.*;
import java.util.*;
import com.bruceeckel.test.*;
// Specific group of algorithms packaged
// in each implementation of Visitor:
class PriceVisitor implements Visitor {
private double alSum; // Aluminum
private double pSum; // Paper
private double gSum; // Glass
private double cSum; // Cardboard
public void visit(Aluminum al) {
double v = al.getWeight() * al.getValue();
System.out.println(
"value of Aluminum= " + v);
alSum += v;
}
public void visit(Paper p) {
double v = p.getWeight() * p.getValue();
System.out.println(
"value of Paper= " + v);
pSum += v;
}
public void visit(Glass g) {
double v = g.getWeight() * g.getValue();
System.out.println(
"value of Glass= " + v);
gSum += v;
}
public void visit(Cardboard c) {
double v = c.getWeight() * c.getValue();
System.out.println(
"value of Cardboard = " + v);
cSum += v;
}
void total() {
System.out.println(
"Total Aluminum: $" + alSum +
"\n Total Paper: $" + pSum +
"\nTotal Glass: $" + gSum +
"\nTotal Cardboard: $" + cSum +
"\nTotal: $" +
(alSum + pSum + gSum + cSum));
}
}
class WeightVisitor implements Visitor {
private double alSum; // Aluminum
private double pSum; // Paper
private double gSum; // Glass
private double cSum; // Cardboard
public void visit(Aluminum al) {
alSum += al.getWeight();
System.out.println("weight of Aluminum = "
+ al.getWeight());
}
public void visit(Paper p) {
pSum += p.getWeight();
System.out.println("weight of Paper = "
+ p.getWeight());
}
public void visit(Glass g) {
gSum += g.getWeight();
System.out.println("weight of Glass = "
+ g.getWeight());
}
public void visit(Cardboard c) {
cSum += c.getWeight();
System.out.println("weight of Cardboard = "
+ c.getWeight());
}
void total() {
System.out.println(
"Total weight Aluminum: " + alSum +
"\nTotal weight Paper: " + pSum +
"\nTotal weight Glass: " + gSum +
"\nTotal weight Cardboard: " + cSum +
"\nTotal weight: " +
(alSum + pSum + gSum + cSum));
}
}
public class TrashVisitor extends UnitTest {
Collection bin = new ArrayList();
PriceVisitor pv = new PriceVisitor();
WeightVisitor wv = new WeightVisitor();
public TrashVisitor() {
ParseTrash.fillBin("../trash/Trash.dat",
new FillableVisitor(
new FillableCollection(bin)));
}
public void test() {
Iterator it = bin.iterator();
while(it.hasNext()) {
Visitable v = (Visitable)it.next();
v.accept(pv);
v.accept(wv);
}
pv.total();
wv.total();
}
public static void main(String args[]) {
new TrashVisitor().test();
}
} ///:~
In Test( ), note
how visitability is added by simply creating a different kind of bin using the
decorator. Also notice that the FillableCollection adapter has the
appearance of being used as a decorator (for ArrayList) in this
situation. However, it completely changes the interface of the ArrayList,
whereas the definition of Decorator is that the interface of the
decorated class must still be there after decoration.
Note that the shape of the client code
(shown in the Test class) has changed again, from the original approaches
to the problem. Now there’s only a single Trash bin. The two
Visitor objects are accepted into every element in the sequence, and they
perform their operations. The visitors keep their own internal data to tally the
total weights and prices.
Finally, there’s no run time type
identification other than the inevitable cast to Trash when pulling
things out of the sequence. This, too, could be eliminated with the
implementation of parameterized types in Java.
One way you can distinguish this solution
from the double dispatching solution described previously is to note that, in
the double dispatching solution, only one of the overloaded methods,
add( ), was overridden when each subclass was created, while here
each one of the overloaded visit( ) methods is overridden in
every subclass of Visitor.
More coupling?
There’s a lot more code here, and
there’s definite coupling between the Trash hierarchy and the
Visitor hierarchy. However, there’s also high cohesion within the
respective sets of classes: they each do only one thing (Trash describes
Trash, while Visitor describes actions performed on Trash), which
is an indicator of a good design. Of course, in this case it works well only if
you’re adding new Visitors, but it gets in the way when you add new
types of Trash.
Low coupling between classes and high
cohesion within a class is definitely an important design goal. Applied
mindlessly, though, it can prevent you from achieving a more elegant design. It
seems that some classes inevitably have a certain intimacy with each other.
These often occur in pairs that could perhaps be called
couplets; for example, containers and iterators.
The Trash-Visitor pair above appears to be another such
couplet.
RTTI considered harmful?
Various designs in this chapter attempt
to remove RTTI, which might give you the impression that it’s
“considered harmful” (the condemnation used for poor, ill-fated
goto, which was thus never put into Java). This isn’t true; it is
the misuse of RTTI that is the problem. The reason
our designs removed RTTI is because the misapplication of that feature prevented
extensibility, while the stated goal was to be able to
add a new type to the system with as little impact on surrounding code as
possible. Since RTTI is often misused by having it look for every single type in
your system, it causes code to be non-extensible: when you add a new type, you
have to go hunting for all the code in which RTTI is used, and if you miss any
you won’t get help from the compiler.
However, RTTI doesn’t automatically
create non-extensible code. Let’s revisit the trash recycler once more.
This time, a new tool will be introduced, which I call a TypeMap. It
contains a HashMap that holds ArrayLists, but the interface is
simple: you can add( ) a new object, and you can get( )
an ArrayList containing all the objects of a particular type. The keys
for the contained HashMap are the types in the associated
ArrayList. The beauty of this design (suggested by Larry O’Brien)
is that the TypeMap dynamically adds a new pair whenever it encounters a
new type, so whenever you add a new type to the system (even if you add the new
type at run time), it adapts.
Our example will again build on the
structure of the Trash types in package c12.Trash (and the
Trash.dat file used there can be used here without
change):
//: c12:dynatrash:DynaTrash.java
// Using a Map of Lists and RTTI
// to automatically sort trash into
// ArrayLists. This solution, despite the
// use of RTTI, is extensible.
import c12.trash.*;
import java.util.*;
import com.bruceeckel.test.*;
// Generic TypeMap works in any situation:
class TypeMap {
private Map t = new HashMap();
public void add(Object o) {
Class type = o.getClass();
if(t.containsKey(type))
((List)t.get(type)).add(o);
else {
List v = new ArrayList();
v.add(o);
t.put(type,v);
}
}
public List get(Class type) {
return (List)t.get(type);
}
public Iterator keys() {
return t.keySet().iterator();
}
}
// Adapter class to allow callbacks
// from ParseTrash.fillBin():
class TypeMapAdapter implements Fillable {
TypeMap map;
public TypeMapAdapter(TypeMap tm) { map = tm; }
public void addTrash(Trash t) { map.add(t); }
}
public class DynaTrash extends UnitTest {
TypeMap bin = new TypeMap();
public DynaTrash() {
ParseTrash.fillBin("../trash/Trash.dat",
new TypeMapAdapter(bin));
}
public void test() {
Iterator keys = bin.keys();
while(keys.hasNext())
Trash.sumValue(
bin.get((Class)keys.next()).iterator());
}
public static void main(String args[]) {
new DynaTrash().test();
}
} ///:~
Although powerful, the
definition for TypeMap is simple. It contains a HashMap, and the
add( ) method does most of the work. When you add( ) a
new object, the reference for the Class object for that type is
extracted. This is used as a key to determine whether an ArrayList
holding objects of that type is already present in the HashMap. If so,
that ArrayList is extracted and the object is added to the
ArrayList. If not, the Class object and a new ArrayList are
added as a key-value pair.
You can get an Iterator of all the
Class objects from keys( ), and use each Class object
to fetch the corresponding ArrayList with get( ). And
that’s all there is to it.
The filler( ) method is
interesting because it takes advantage of the design of
ParseTrash.fillBin( ), which doesn’t just try to fill an
ArrayList but instead anything that implements the Fillable
interface with its addTrash( ) method. All filler( )
needs to do is to return a reference to an interface that implements
Fillable, and then this reference can be used as an argument to
fillBin( ) like this:
ParseTrash.fillBin("Trash.dat", bin.filler());
To
produce this reference, an
anonymous
inner class (described in Chapter 8 of Thinking in Java, 2nd
edition) is used. You never need a named class to implement Fillable,
you just need a reference to an object of that class, thus this is an
appropriate use of anonymous inner classes.
An interesting thing about this design is
that even though it wasn’t created to handle the sorting,
fillBin( ) is performing a sort every time it inserts a Trash
object into bin.
Much of class DynaTrash should be
familiar from the previous examples. This time, instead of placing the new
Trash objects into a bin of type ArrayList, the bin
is of type TypeMap, so when the trash is thrown into bin
it’s immediately sorted by TypeMap’s internal sorting
mechanism. Stepping through the TypeMap and operating on each individual
ArrayList becomes a simple matter.
As you can see, adding a new type to the
system won’t affect this code at all, and the code in TypeMap is
completely independent. This is certainly the smallest solution to the problem,
and arguably the most elegant as well. It does rely heavily on RTTI, but notice
that each key-value pair in the HashMap is looking for only one type. In
addition, there’s no way you can “forget” to add the proper
code to this system when you add a new type, since there isn’t any code
you need to
add.
Summary
Coming up with a design such as
TrashVisitor.java that contains a larger amount of code than the earlier
designs can seem at first to be counterproductive. It pays to notice what
you’re trying to accomplish with various designs. Design patterns in
general strive to separate the things that change from the things that stay
the same. The “things that change” can refer to many different
kinds of changes. Perhaps the change occurs because the program is placed into a
new environment or because something in the current environment changes (this
could be: “The user wants to add a new shape to the diagram currently on
the screen”). Or, as in this case, the change could be the evolution of
the code body. While previous versions of the trash sorting example emphasized
the addition of new types of Trash to the system,
TrashVisitor.java allows you to easily add new functionality
without disturbing the Trash hierarchy. There’s more code in
TrashVisitor.java, but adding new functionality to Visitor is
cheap. If this is something that happens a lot, then it’s worth the extra
effort and code to make it happen more easily.
The discovery of the
vector of change is no trivial matter; it’s not
something that an analyst can usually detect before the program sees its initial
design. The necessary information will probably not appear until later phases in
the project: sometimes only at the design or implementation phases do you
discover a deeper or more subtle need in your system. In the case of adding new
types (which was the focus of most of the “recycle” examples) you
might realize that you need a particular inheritance hierarchy only when you are
in the maintenance phase and you begin extending the system!
One of the most important things that
you’ll learn by studying design patterns seems to be an about-face from
what has been promoted so far in this book. That is: “OOP is all about
polymorphism.” This statement can produce the “two-year-old with a
hammer” syndrome (everything looks like a nail). Put another way,
it’s hard enough to “get” polymorphism, and once you do, you
try to cast all your designs into that one particular mold.
What design patterns say is that OOP
isn’t just about polymorphism. It’s about “separating the
things that change from the things that stay the same.”
Polymorphism is an especially important way to do this,
and it turns out to be helpful if the programming language directly supports
polymorphism (so you don’t have to wire it in yourself, which would tend
to make it prohibitively expensive). But design patterns in general show
other ways to accomplish the basic goal, and once your eyes have been
opened to this you will begin to search for more creative
designs.
Since the Design Patterns book
came out and made such an impact, people have been searching for other patterns.
You can expect to see more of these appear as time goes on. Here are some sites
recommended by Jim Coplien, of C++ fame (http://www.bell-labs.com/~cope),
who is one of the main proponents of the patterns movement:
http://st-www.cs.uiuc.edu/users/patterns
http://c2.com/cgi/wiki
http://c2.com/ppr
http://www.bell-labs.com/people/cope/Patterns/Process/index.html
http://www.bell-labs.com/cgi-user/OrgPatterns/OrgPatterns
http://st-www.cs.uiuc.edu/cgi-bin/wikic/wikic
http://www.cs.wustl.edu/~schmidt/patterns.html
http://www.espinc.com/patterns/overview.html
Also note there has been a yearly
conference on design patterns, called PLOP, that produces a published
proceedings, the third of which came out in late 1997 (all published by
Addison-Wesley).
Exercises
- Add a class Plastic
to
TrashVisitor.java.
- Add
a class Plastic to
DynaTrash.java.
- Create
a decorator like VisitableDecorator, but for the multiple dispatching
example, along with an “adapter decorator” class like the one
created for VisitableDecorator. Build the rest of the example and show
that it works.
[14]
Addison-Wesley, 1999.
[15]
This was a solution created by Jaroslav Tulach in a
design patterns class that I gave in Prague.
